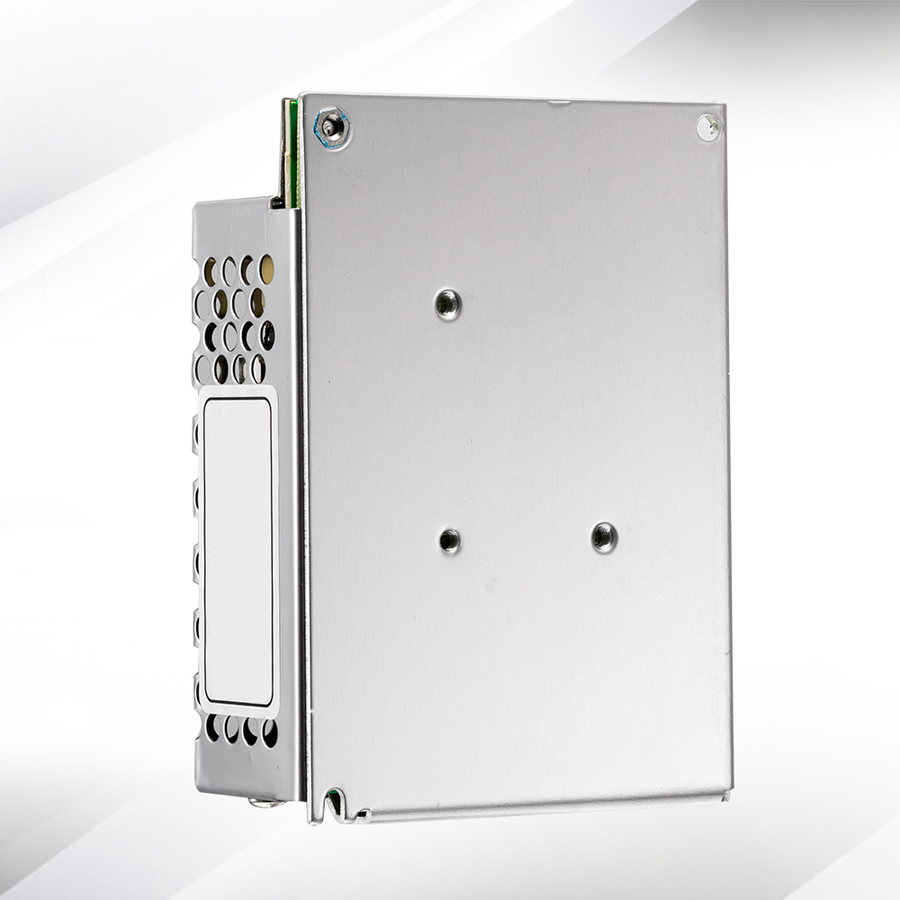

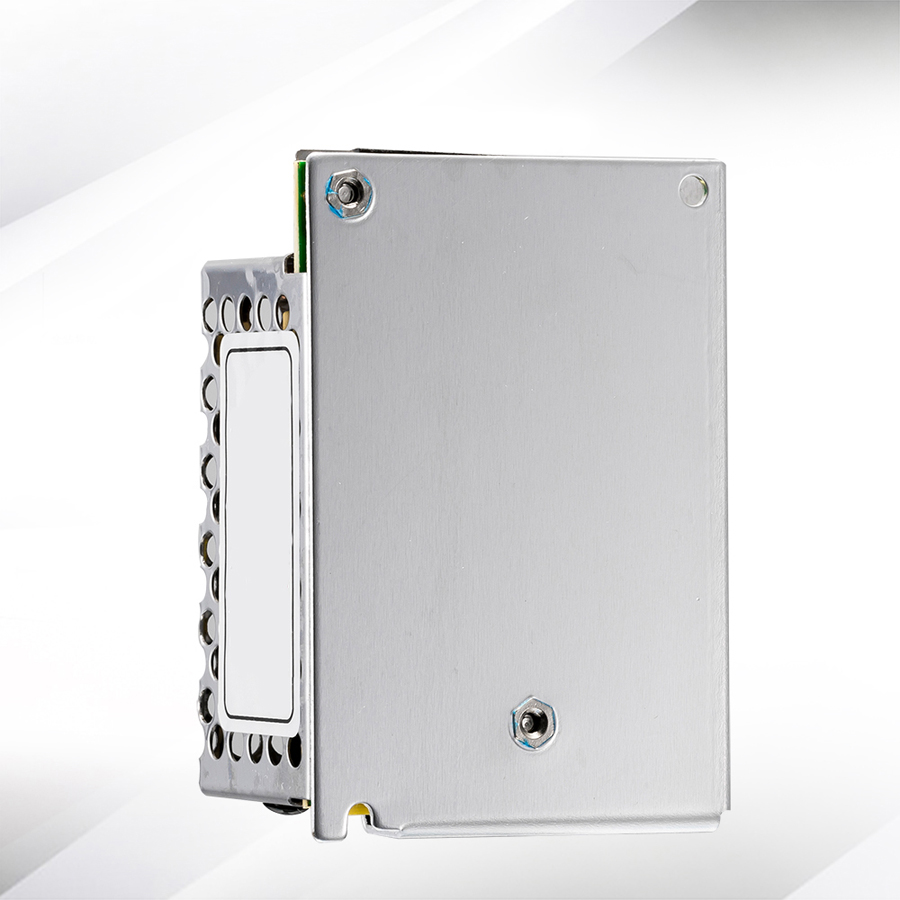

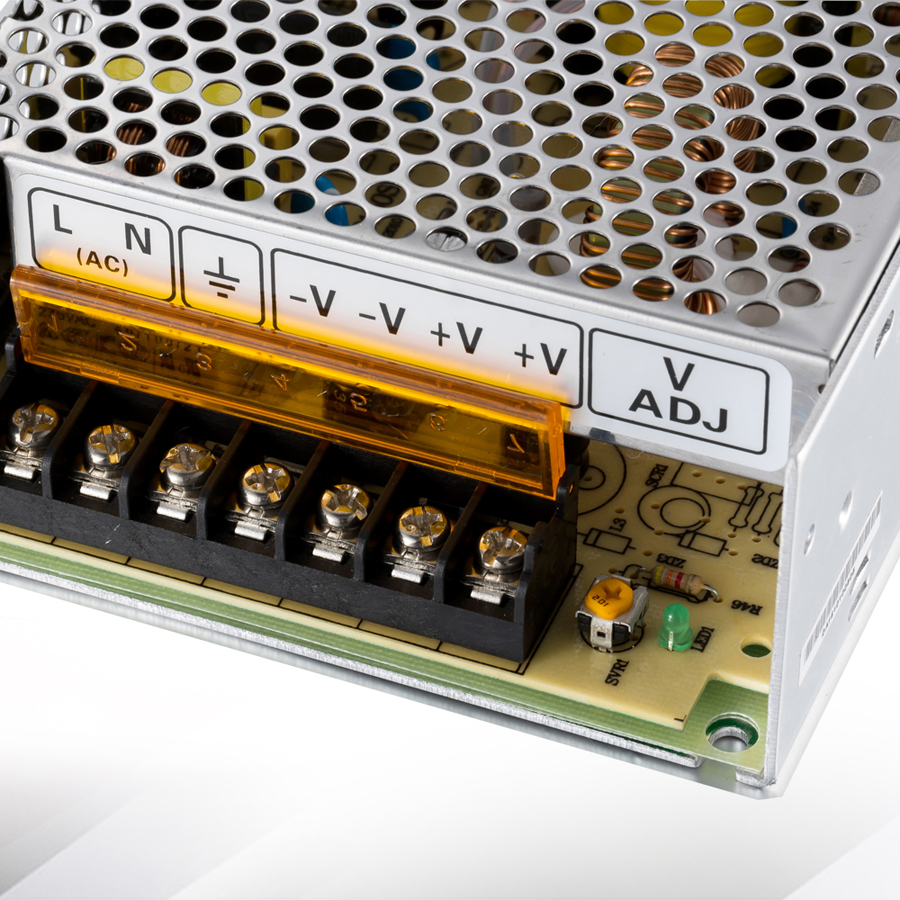

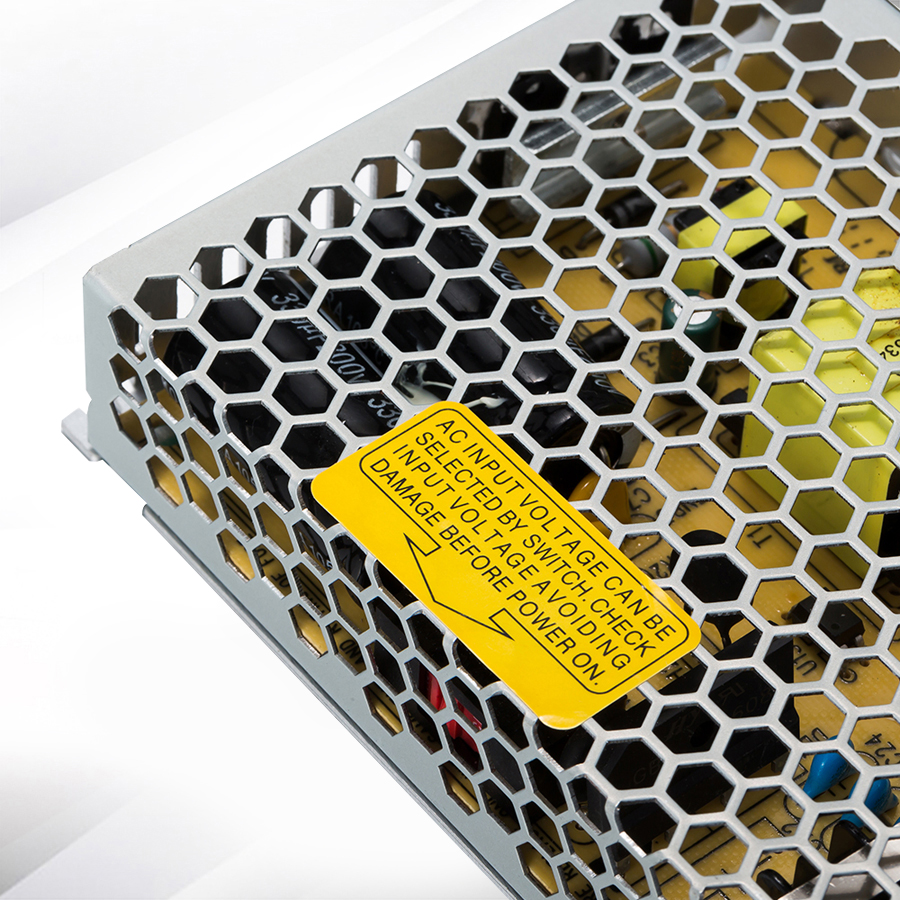

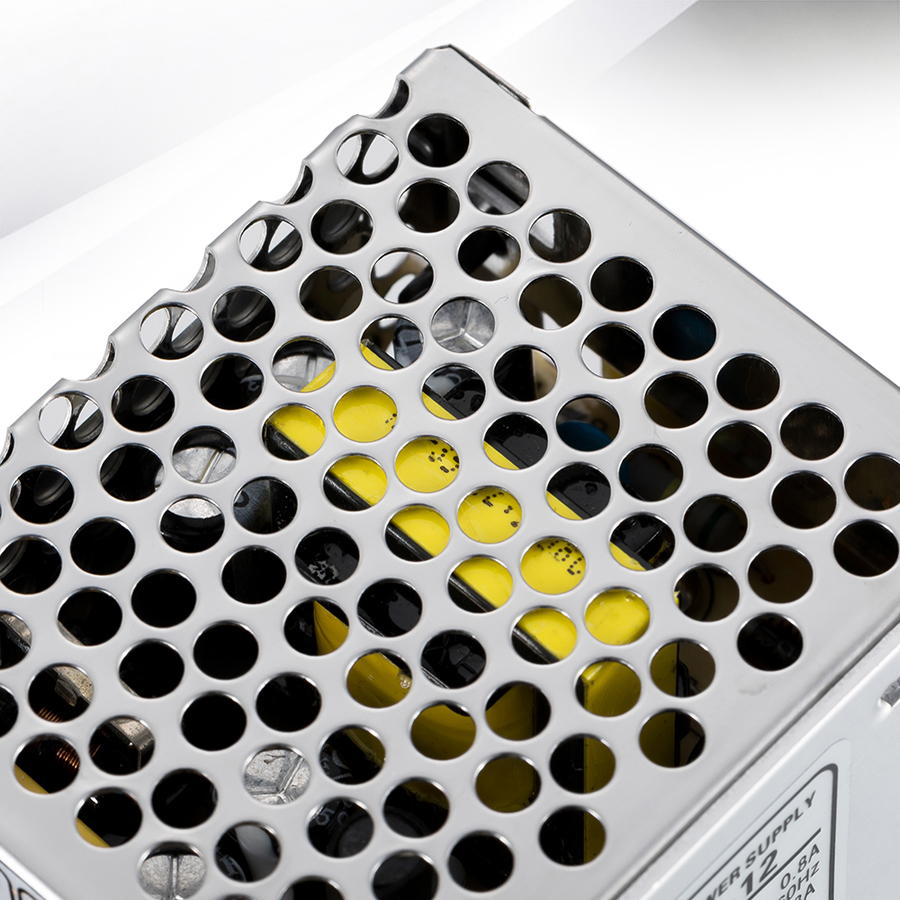

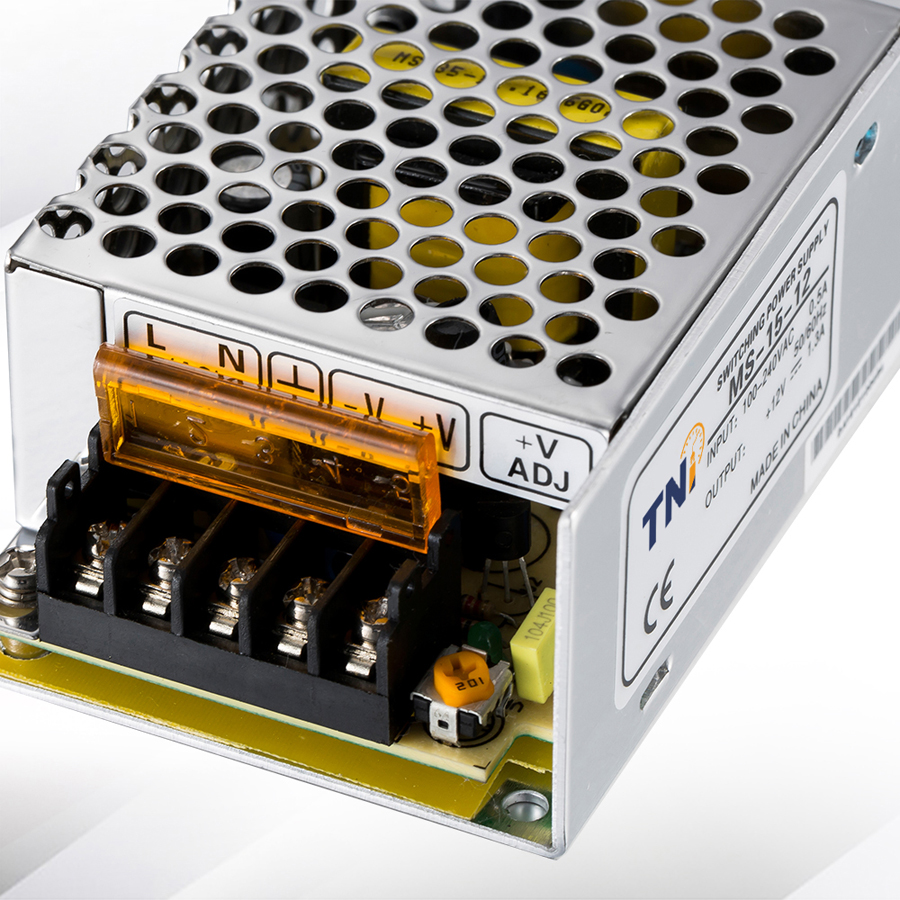

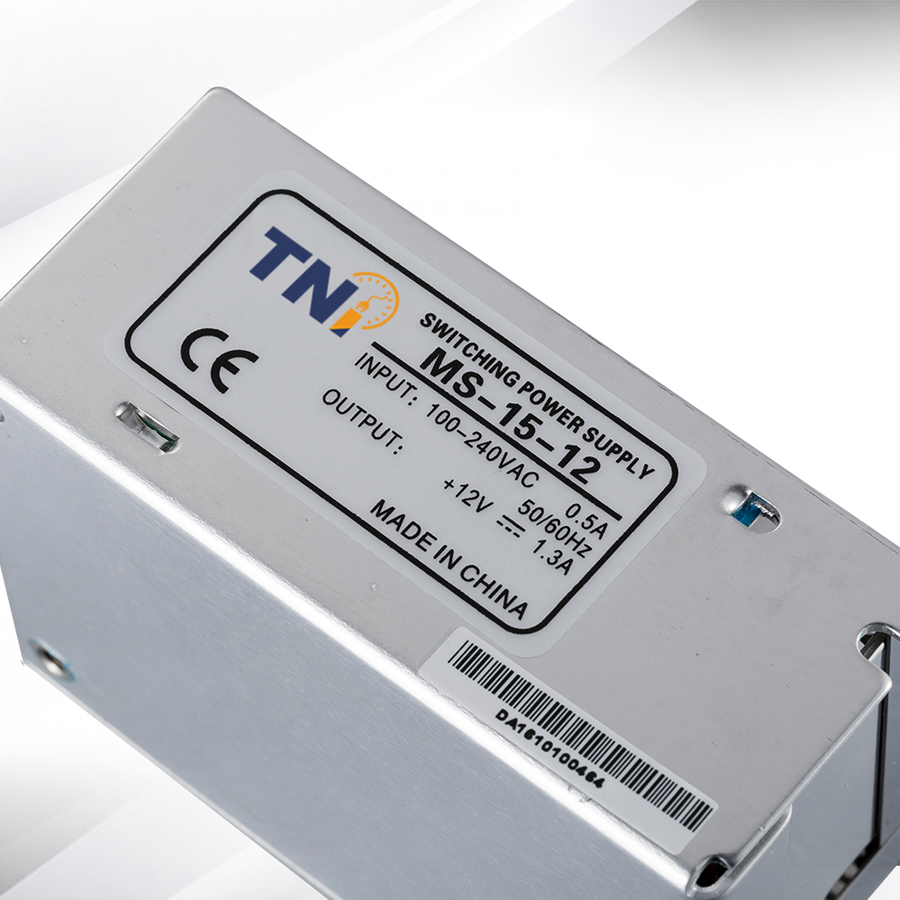

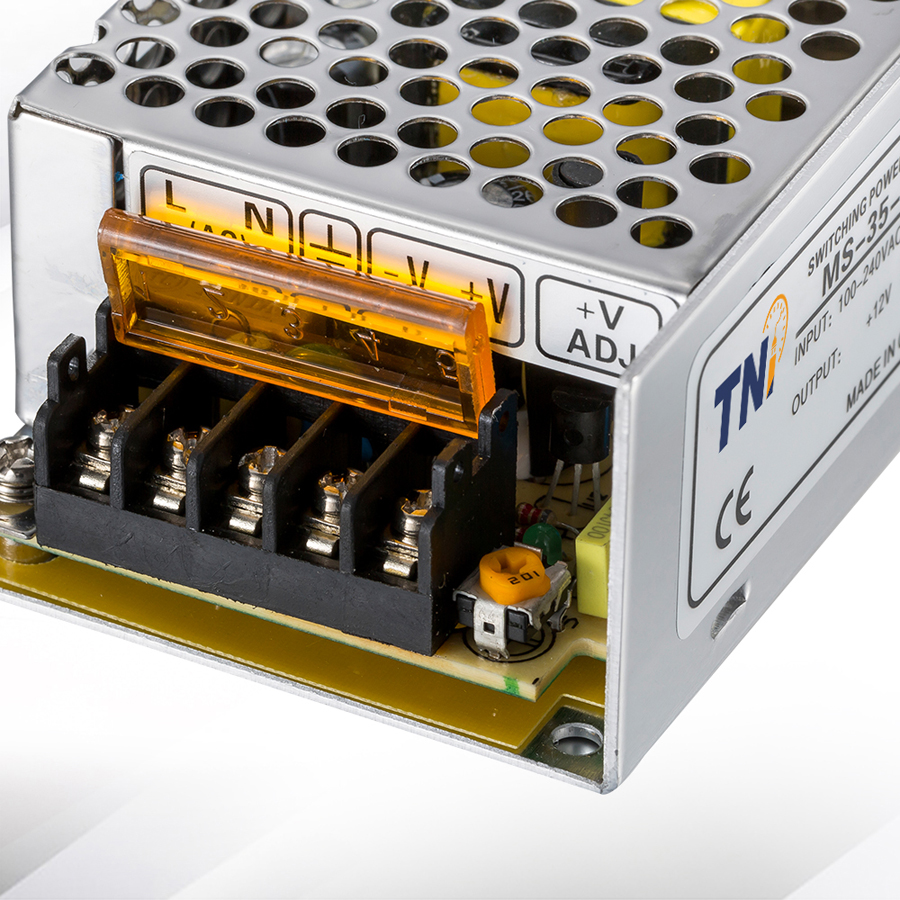

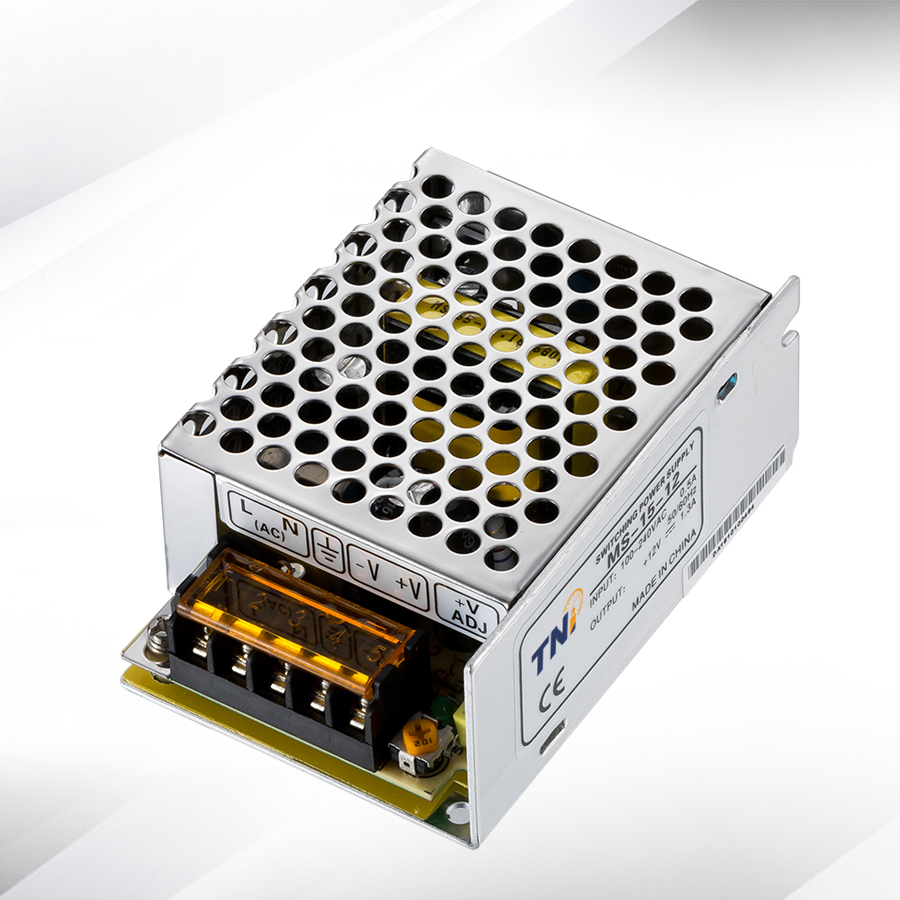

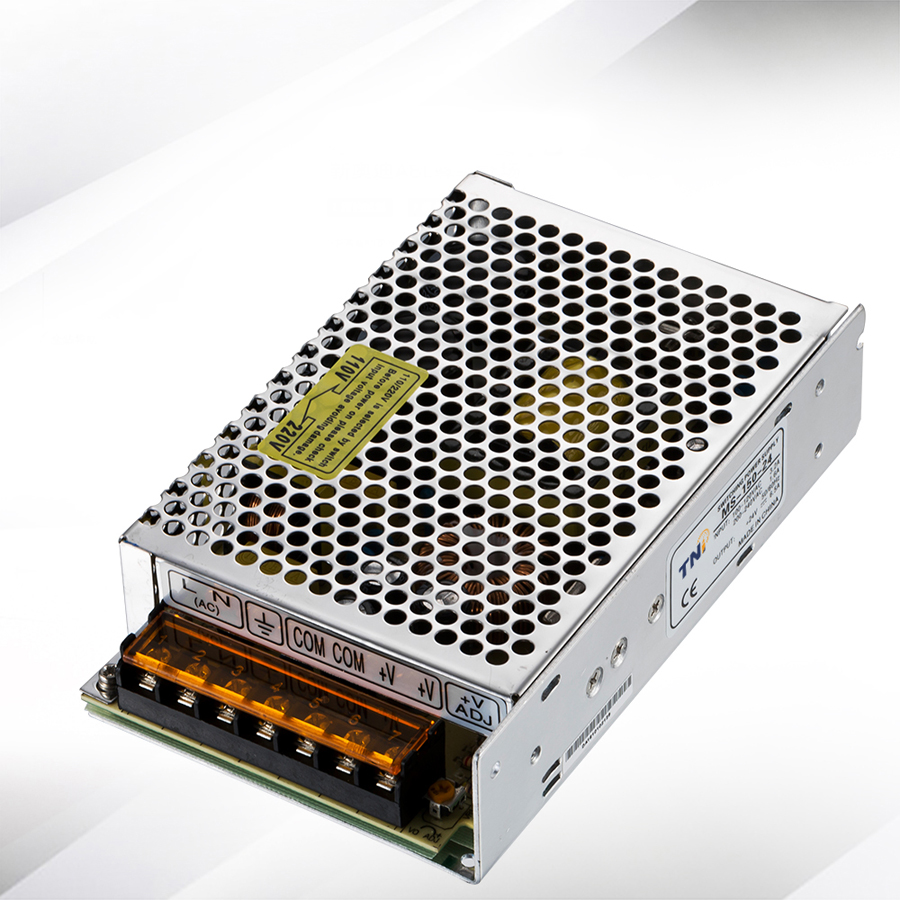

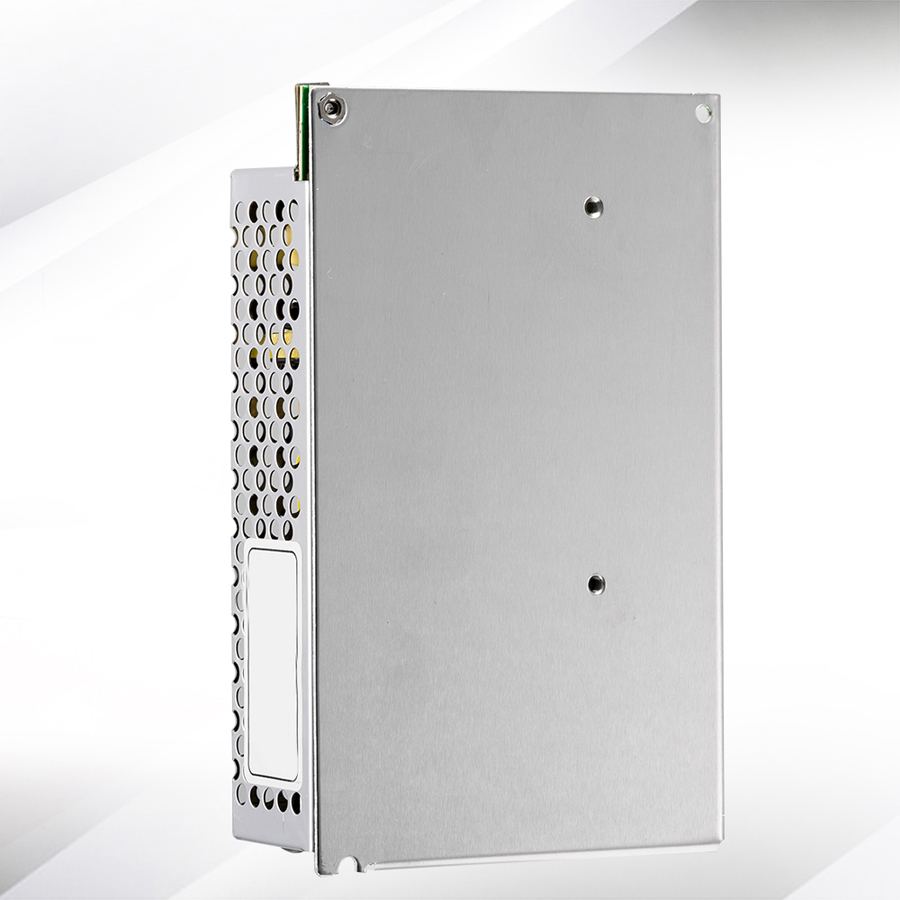

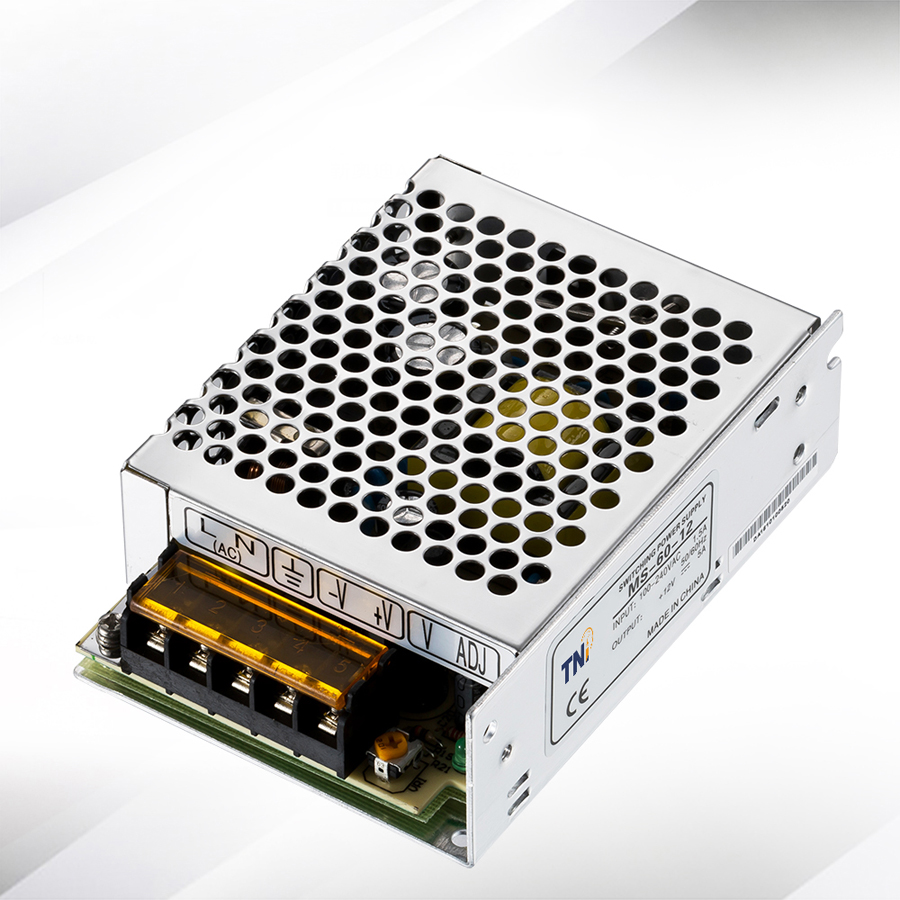

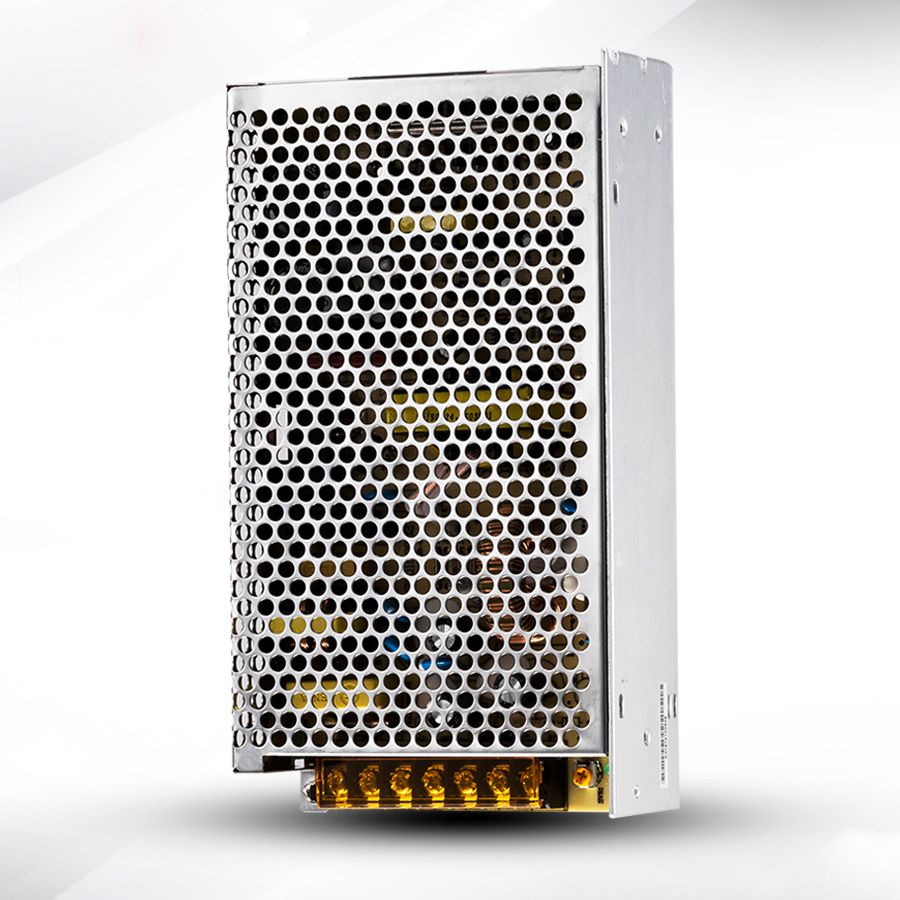

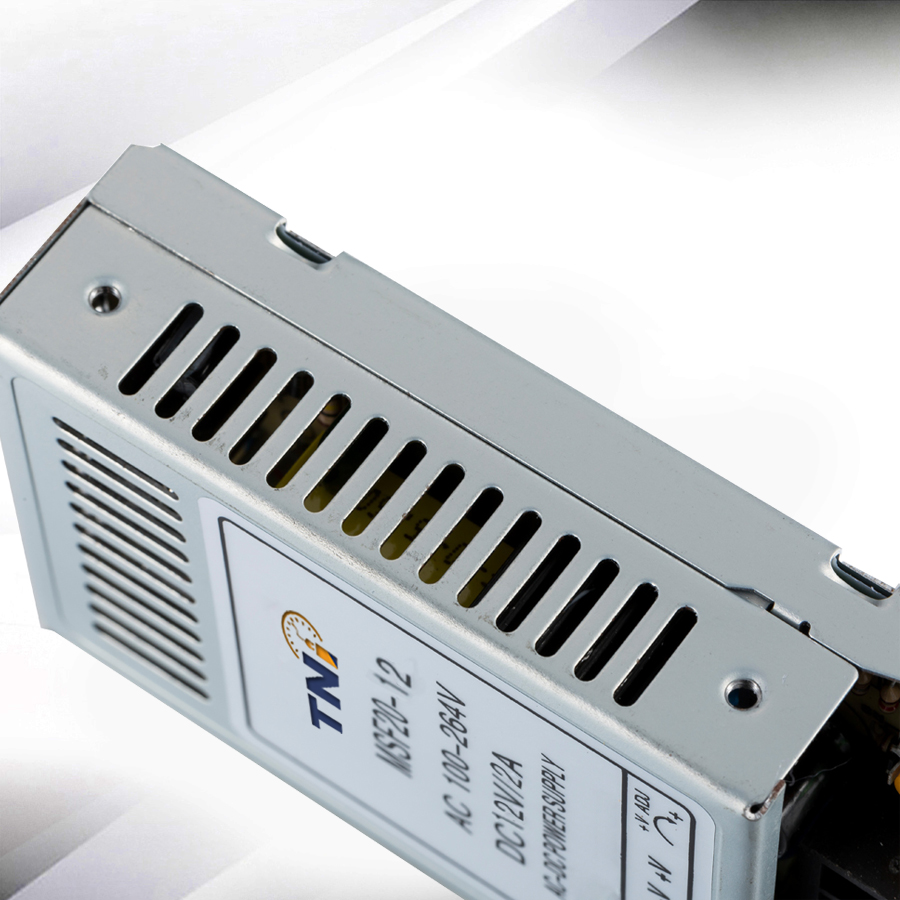

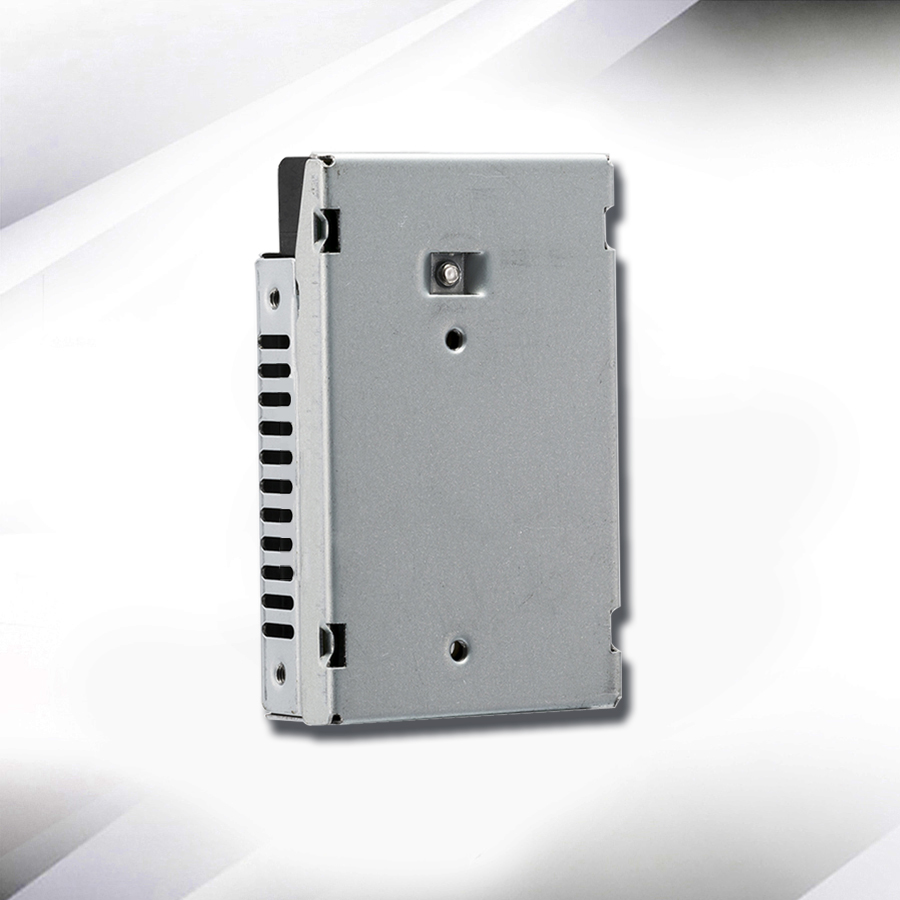

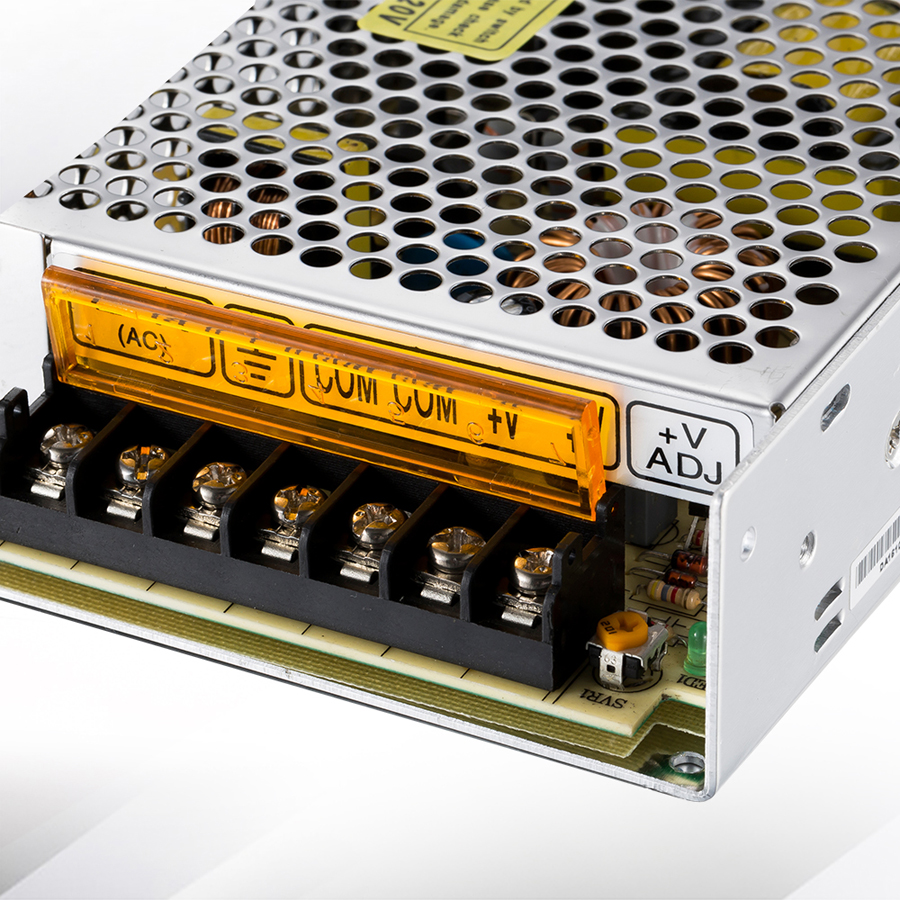

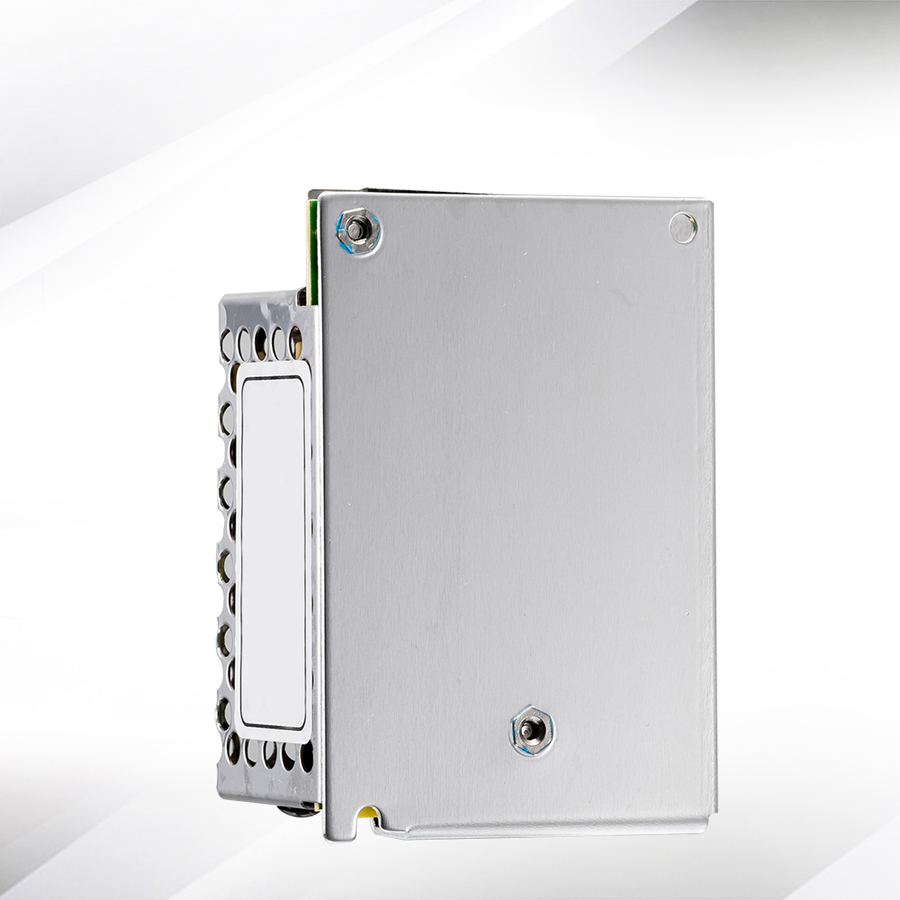

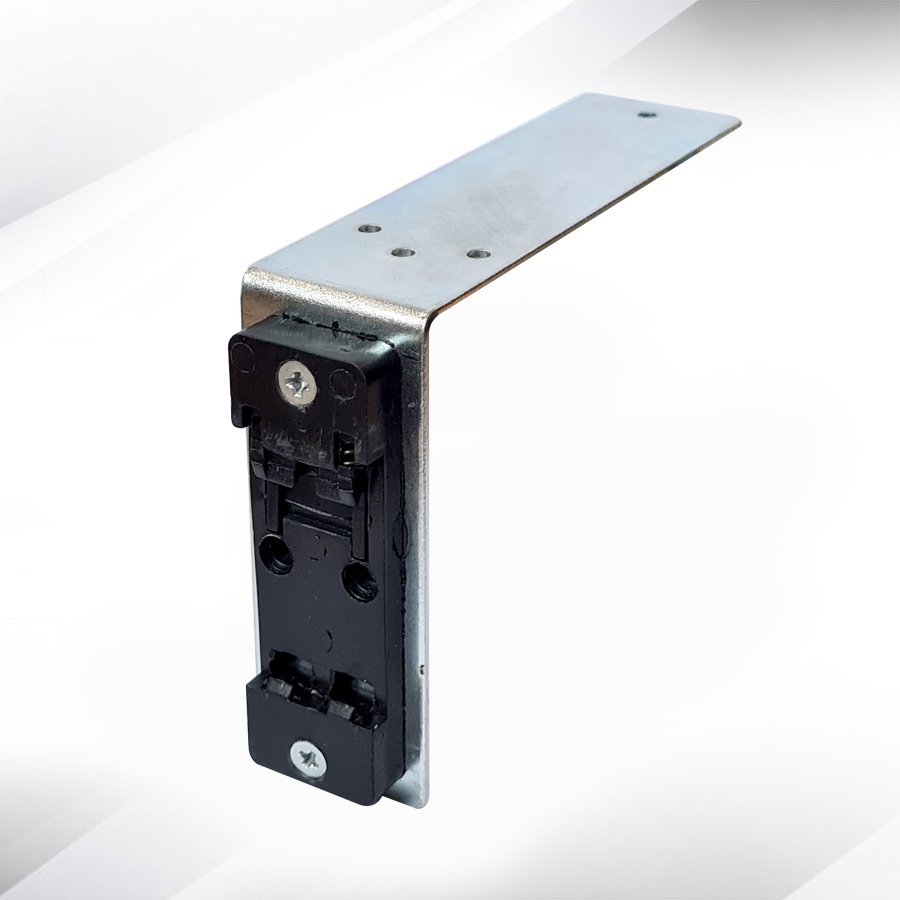

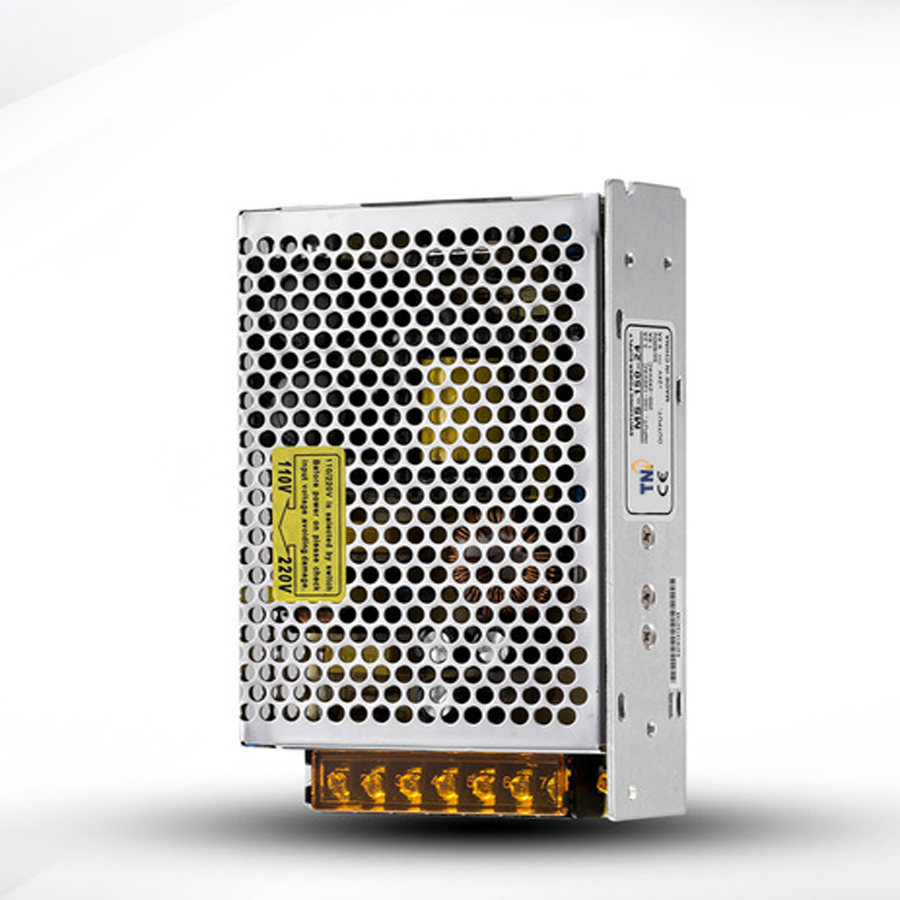

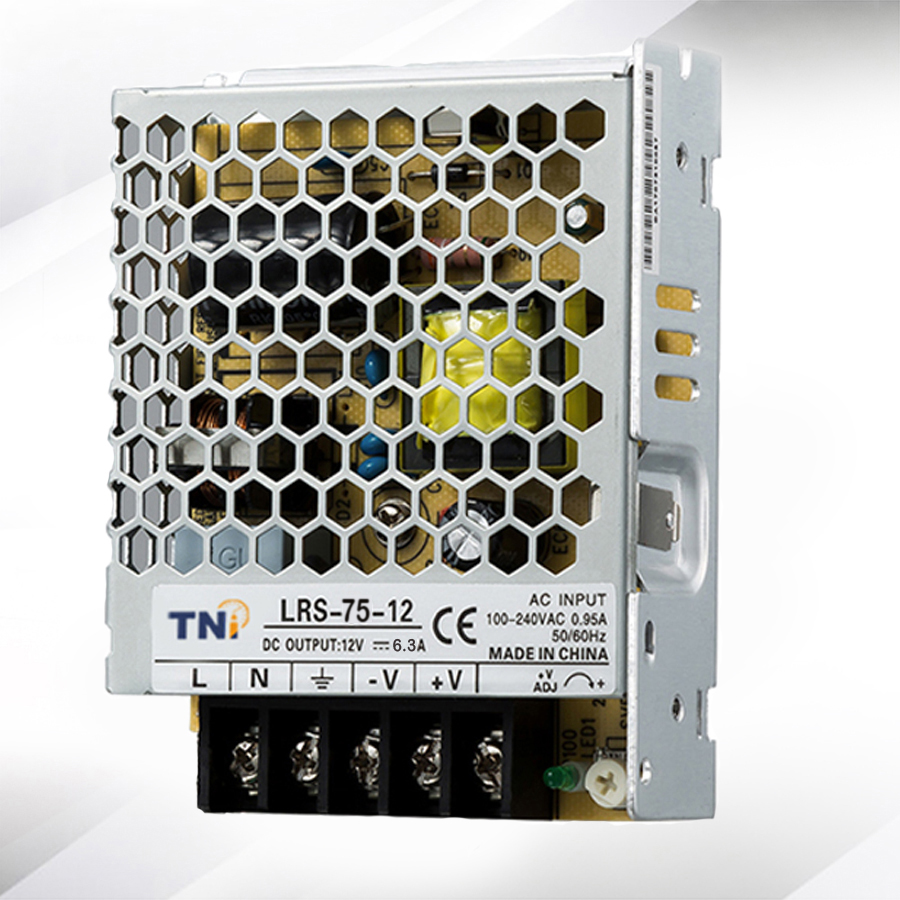

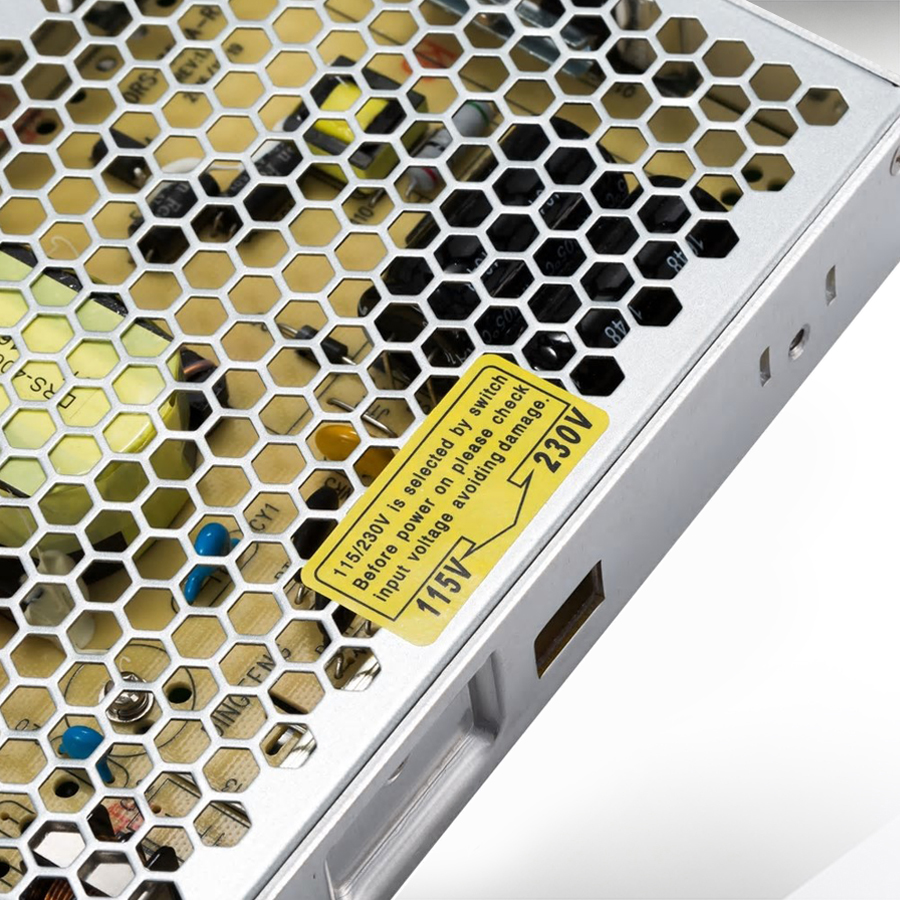

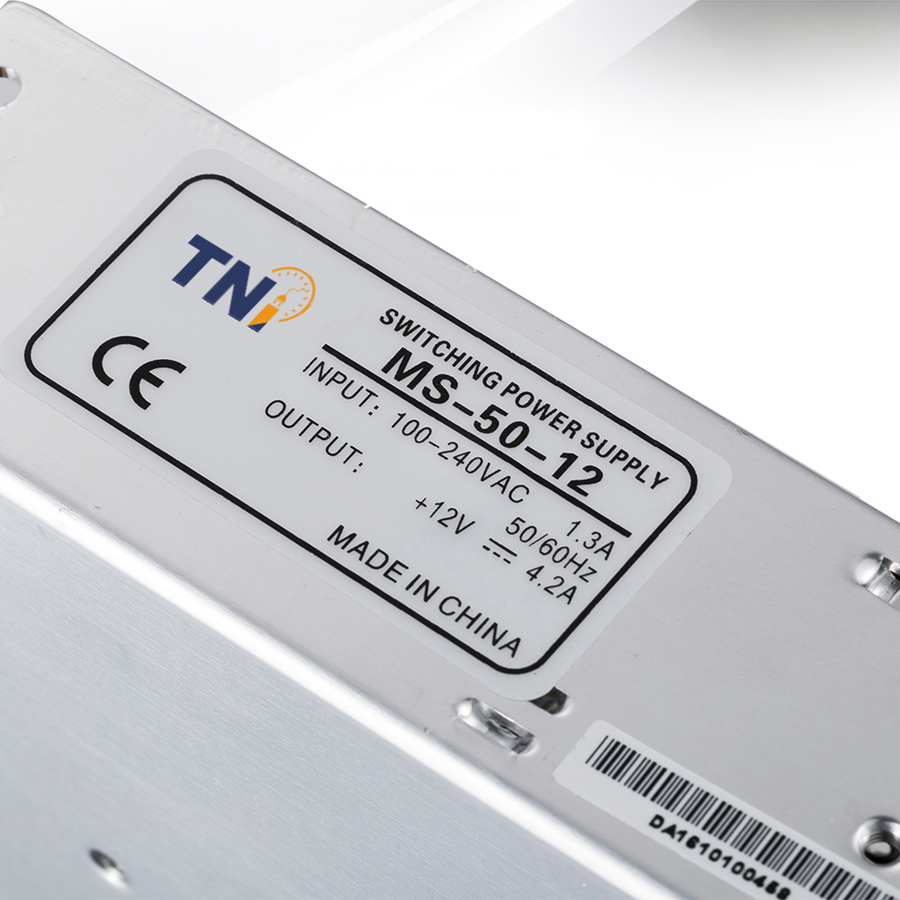

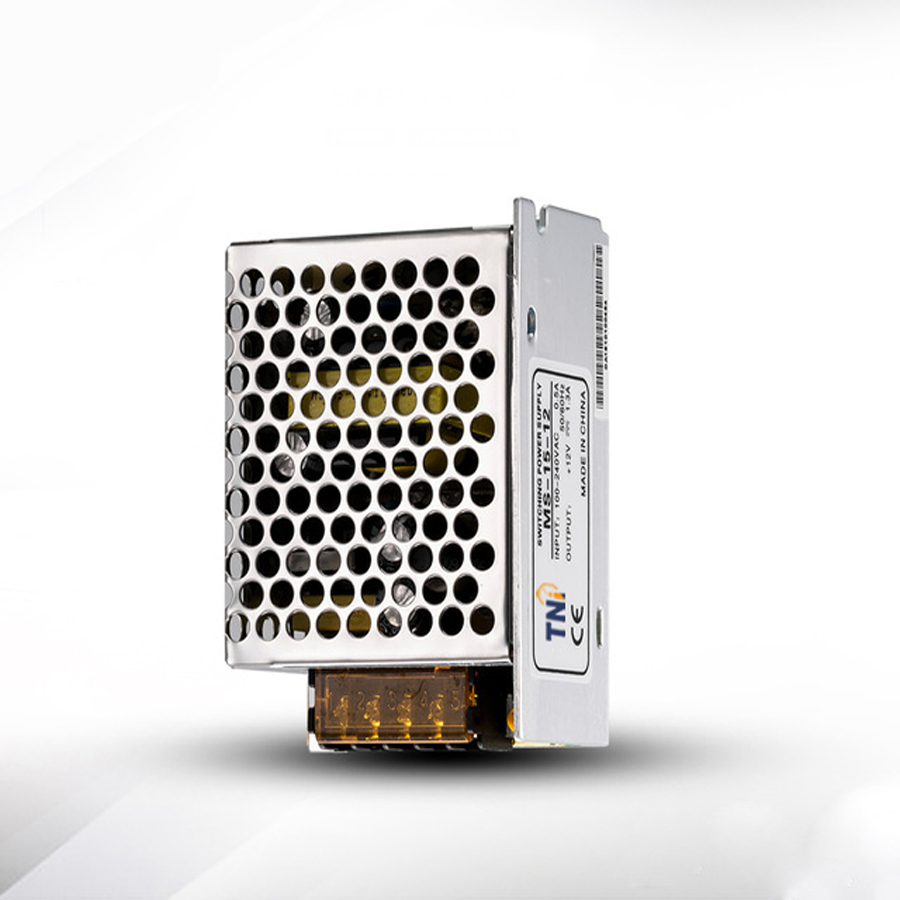

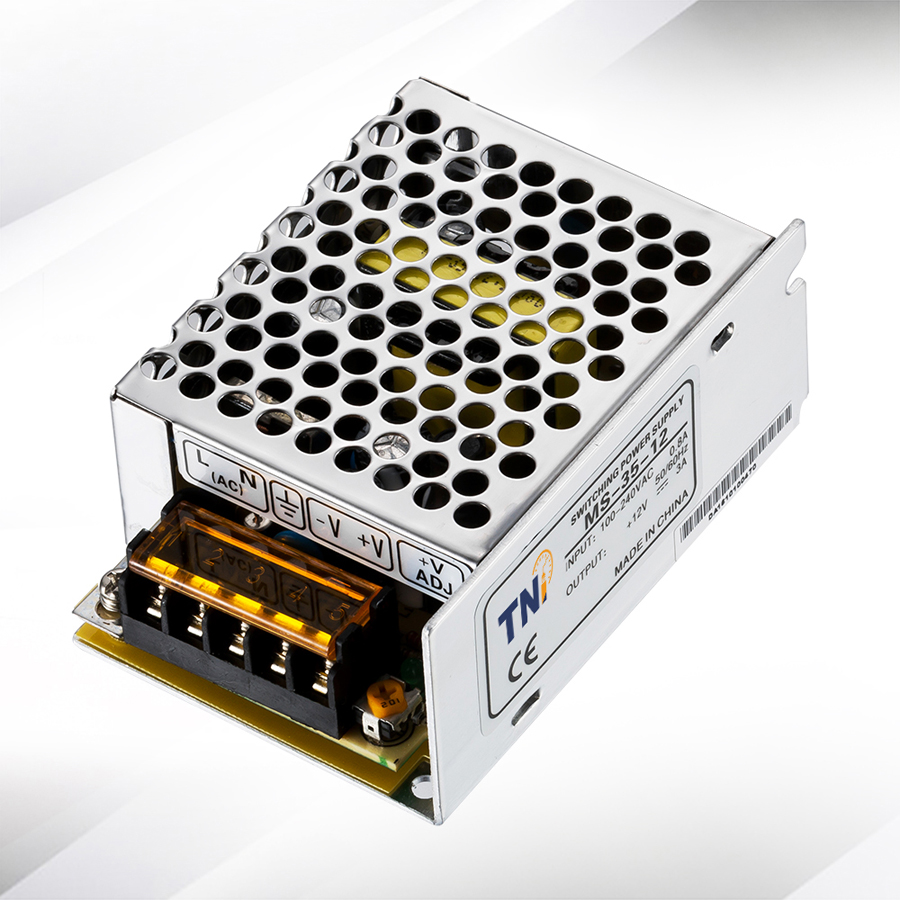

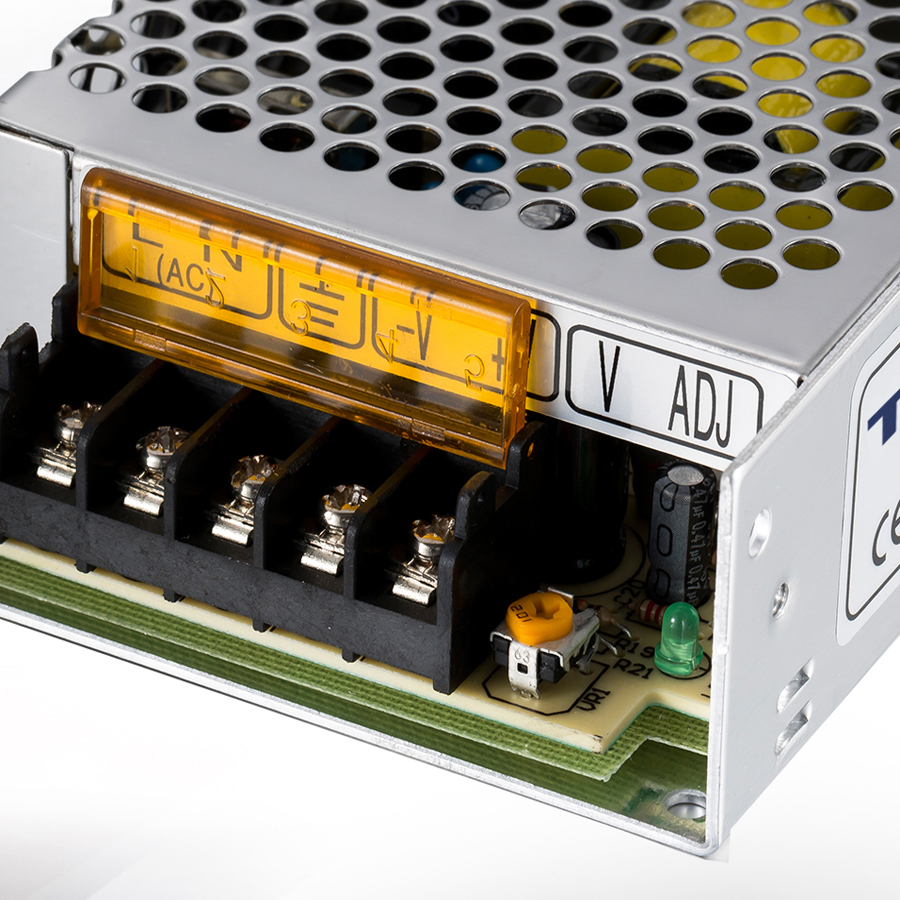

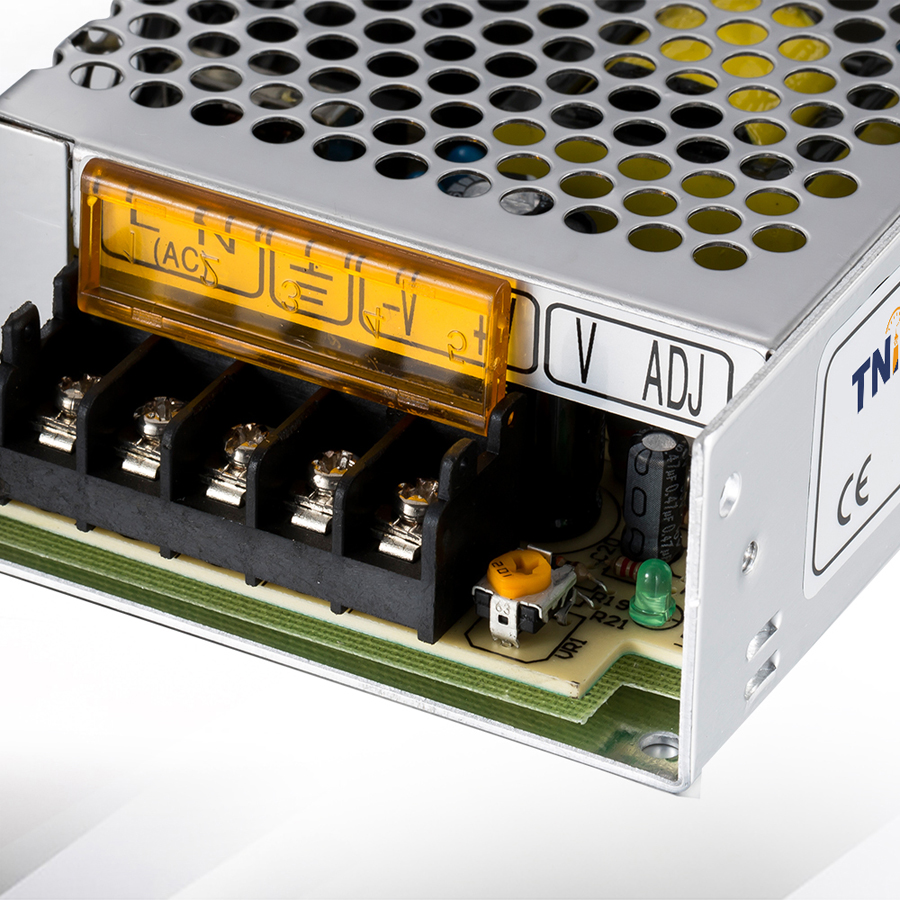

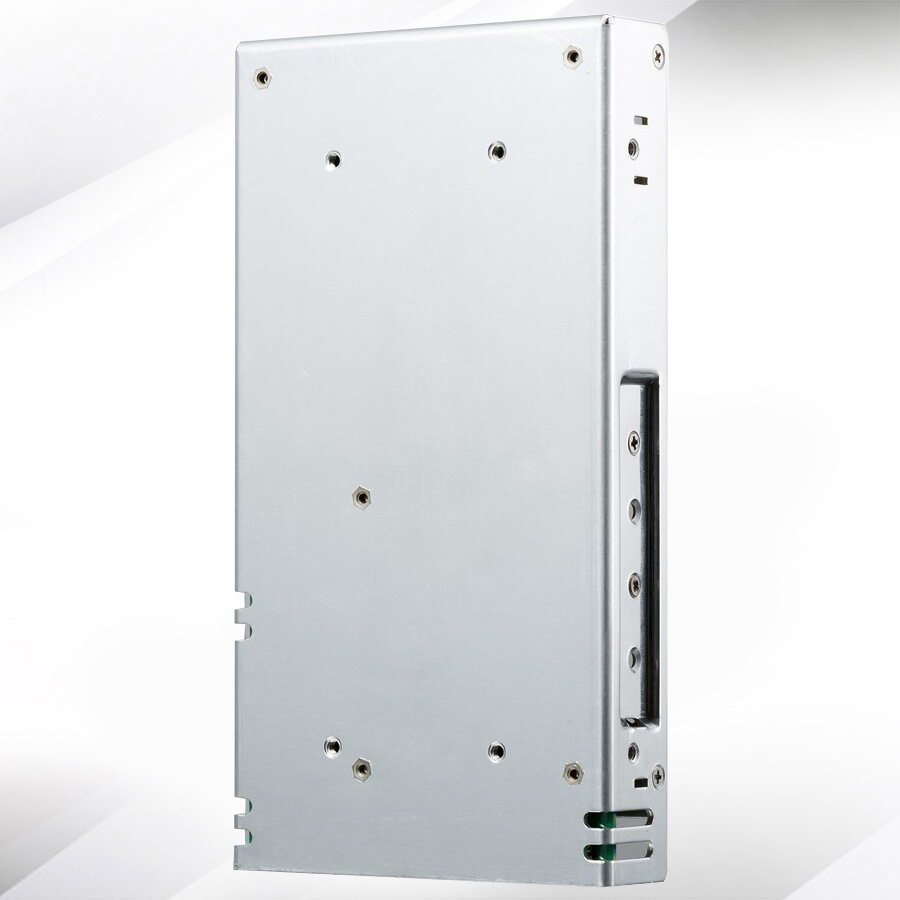

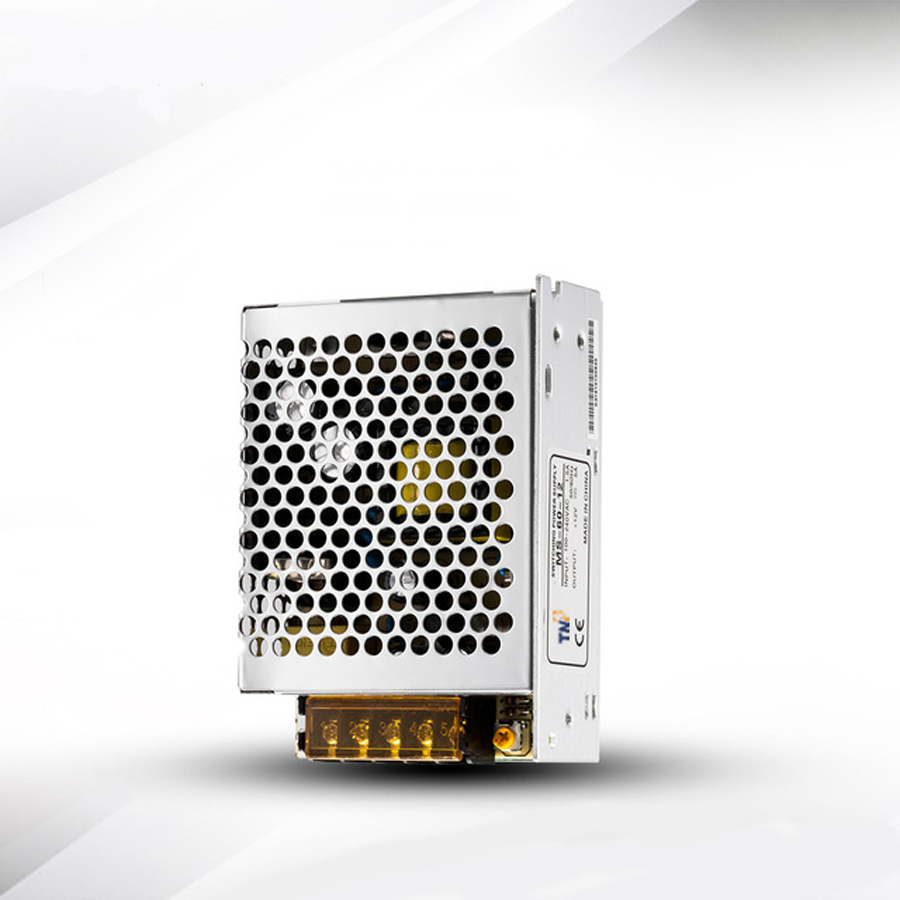

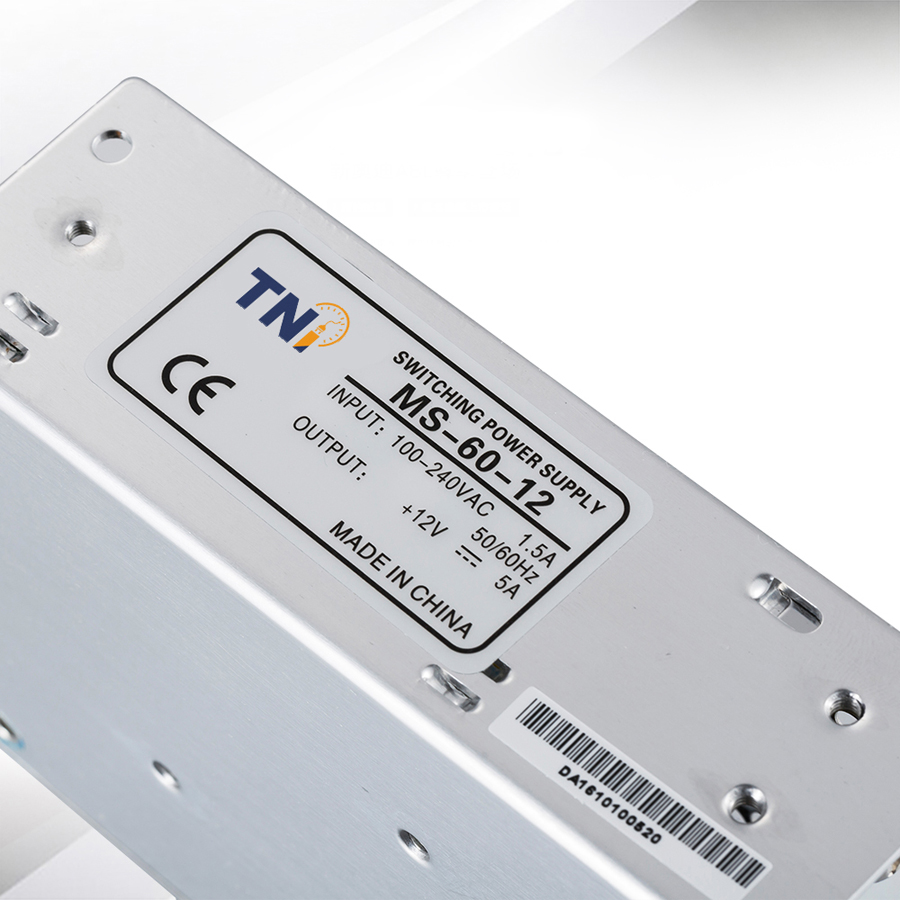

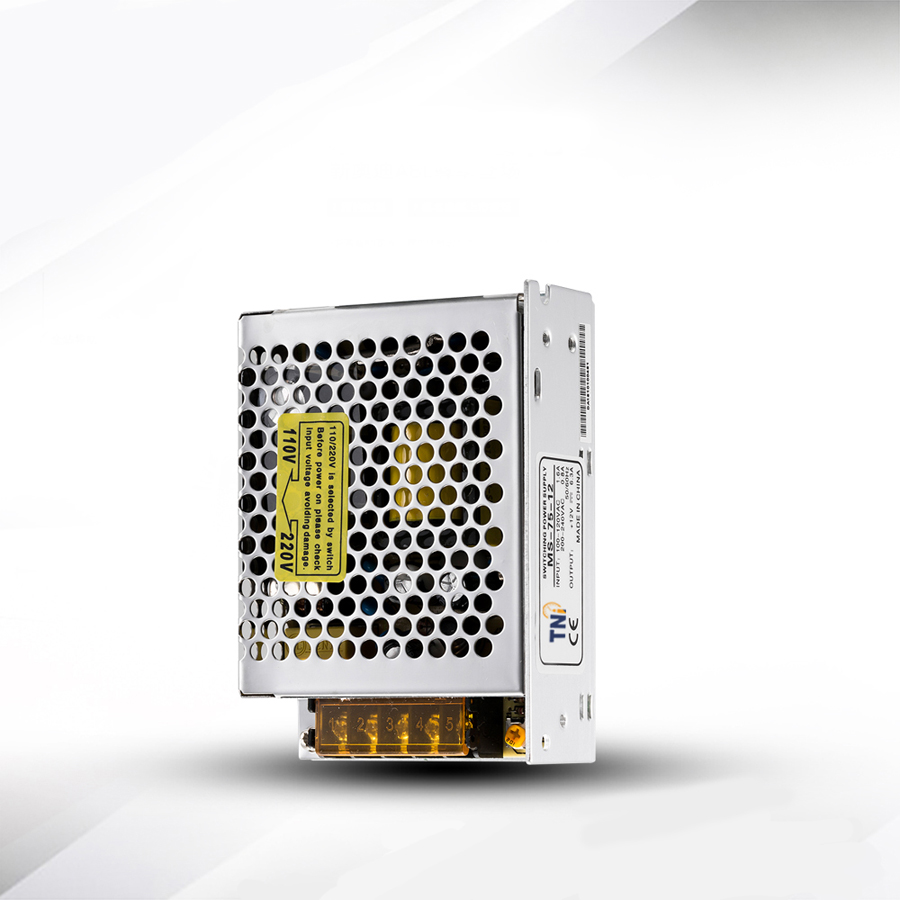

SWITCH MODE POWER SUPPLY

Industrial Control Panel	Injection Molding Machines
Elevator Control Panel	Industrial Machinery

Download

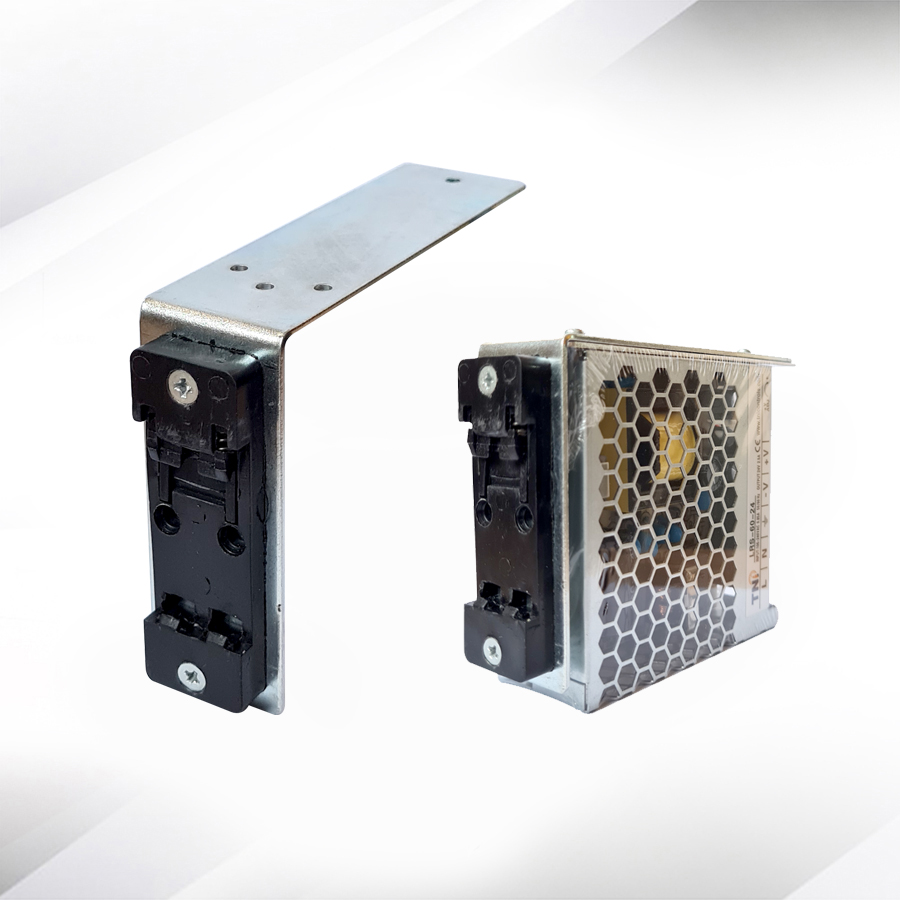

FEATURES SPECIFICATION ORDER CODE DIMENSION ACCESSORIES

Compact, Low Cost & High Reliability

PROTECTION: Short circuit, overvoltage & overload

100% Full load Burn-in test

LED Indicator For Power On

Cooling By Free air convection

CE Marked on all Models

1 Year Warranty

INPUT SPECIFICATION

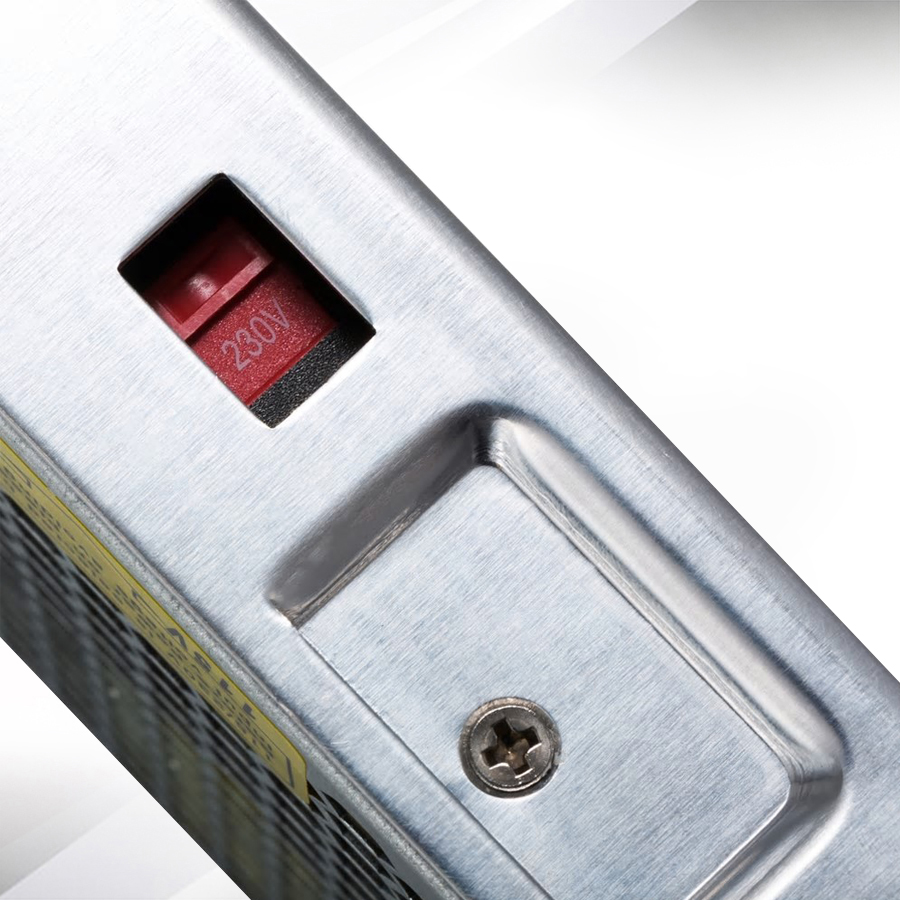

Voltage Range	100-120VAC
Voltage Range	200-240VAC
Frequency Range	47-63Hz
Efficiency	MS-15-5: 68%
	MS-15-12: 71%
	MS-15-24: 75%
AC Current(typ.)	0.25A / 230VAC
Inrush Current(typ.)	30A / 230VAC (for cold start at 250C)
Leakage Current	<0.5mA / 240VAC

OUTPUT SPECIFICATION
Rated Current	MS-15-5: 3.0A
	MS-15-12: 1.25A
	MS-15-24: 0.7A
Rated Power	15Watts
Voltage ADJ. Range	10% (with V.ADJ)
Voltage Tolerance	1%
Ripple & Noise(Max)	MS-15-5: 80mVp-p
	MS-15-12: 120mVp-p
	MS-15-24: 150mVp-p
Setup Time	200ms / 230VAC
Rise Time	50ms / 230VAC
Hold Time(typ.)	20ms / 230VAC

PROTECTION
Overload	100% to 110% rated load current
Overload	Protection Type: Hiccup mode, Recovers Automatically after fault condition is removed
Overvoltage	Protection Type: Shutdown output voltage, re-power on to recover

ENVIRONMENT
Working Temperature	-100C to 600C (derating is required according to temperature)
Working Humidity	20% to 90% RH
Storage Temperature	-200C to 850C (with no icing or condensation)
Storage Humidity	10% ~ 95% RH
Vibration Resistance	10 to 500Hz, 10min/1cycle (2G) for 60 minutes each in X,Y,Z directions

SECURITY
Isolation Resistance	I/P and O/P ; I/P and FG ; O/P and FG :100MΩ at 500VDC, 250C,70% RH
Dielectric Strength	Between I/P and O/P : 1.5kVAC for 1 min
	Between I/P and F.G : 1.5kVAC for 1 min
	Between O/P and F.G : 0.5kVAC for 1 min

STANDARDS
Safety Standards	Accord with UL1012
EMC Standards	Meet the FCC PART15J Equipment Condition B
