22.5mm MUSHROOM PUSH BUTTON
AM22-M40
Applications
Industrial Control Panel
Injection Molding Machines
Elevator Control Panel
Industrial Machinery
Download
Datasheet
Manual
FAQ
FEATURES
SPECIFICATION
ORDER CODE

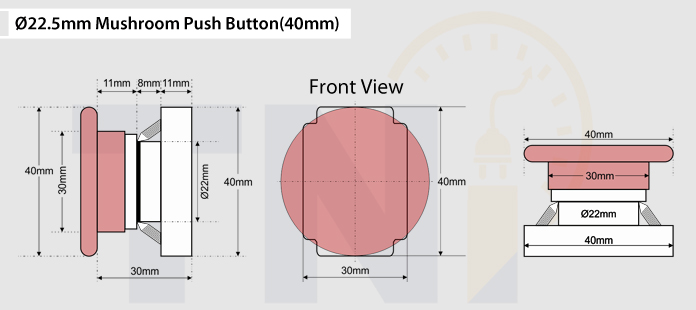

DIMENSION
ACCESSORIES
22.5mm dia cutout
Comfortable Finger Press Position and Switch Toggle Operation Function
All Colors Red, Green, Yellow, Blue, White And Black Available
CE Marked on all Models
1 Year Warranty
TECHNICAL SPECIFICATION
Ambient Temperature
-25˚C to 55˚C
Vibration Resistance
<500Hz, Amplitude about 1.0mm
Impact Resistance
≥ 10g
Operating Frequency
50-60Hz
Contact Action
NO/NC (NC Contact is Directly Disconnected)
Mechanical Life
Button: More than 1 Million time
Head: 100000 time
Electric Life
AC more than 100000 time
PROTECTION
Standard Compliance
GB 14048.5-2008, IEC 60947-5-1
Degree of Protection
IP65
MODEL
COLOUR
MPQ
AM22-M40-R
RED
20
AM22-
M40-G
GREEN
20
AM22-
M40-Y
YELLOW
20
AM22-
M40-B
BLUE
20
AM22-
M40-W
WHITE
20
AM22-
M40-BK
BLACK
20
